Example of database provisioning in the cloud – e-learning platform
In this scenario, we’ll consider provisioning a database for an e-learning platform using the Microsoft Azure cloud. We’ll use Azure’s command-line interface (CLI) to illustrate the process. Here’s a step-by-step methodology:

1. Install the Azure CLI: If it’s not already installed, download and install the Azure CLI onto your local machine.
2. Log in to Azure account: Open a terminal or command prompt and run the following command to log in to your Azure account:

az login

3. Create a resource group: Create a resource group to contain your resources. Replace with a suitable name:

az group create –name –location

4. Create a SQL database: Use the following command to create an Azure SQL Database instance. Replace placeholders with actual values:

az sql server create –name –resource-group –location –admin-user –admin-password

5. Configure firewall rules: Allow your IP address to access the database server:

az sql server firewall-rule create –resource-group –server –name AllowYourIP –start-ip-address –end-ip-address

6. Create a database: Create a database within the SQL server instance:

az sql db create –resource-group –server –name –edition GeneralPurpose –family Gen5 –capacity 2 –zone-redundant false

7. Connect to the database: Retrieve the connection string to connect your application to the Azure SQL database:

az sql db show-connection-string –name –server –client ado.net

8. Data migration and population: Use SQL Server Management Studio or another tool to import your e-learning platform’s schema and data into the newly created Azure SQL database.
9. Application integration: Update your e-learning platform’s configuration to use the Azure SQL Database connection string.
   In this illustrative example of provisioning a database for an e-learning platform on Microsoft Azure, we’ve employed the Azure CLI for a step-by-step walkthrough. Beginning with the installation of Azure CLI and logging in to the Azure account, the process involves creating a resource group, establishing an Azure SQL Database instance, configuring firewall rules, and ultimately connecting the database to the e-learning platform. This detailed methodology ensures a seamless provision of resources tailored to the specific needs of the e-learning application.
   Effectively provisioning a database in the cloud is not just about allocating resources; it’s a strategic process that ensures optimal performance, security, and scalability. In this example, using Microsoft Azure, we’ve demonstrated how each step, from creating a resource group to configuring firewall rules and connecting the database to the application, contributes to a well-orchestrated provisioning workflow. By following such meticulous steps, organizations can not only establish a robust database infrastructure for their applications, but also enhance efficiency and maintain best practices in cloud-based data management. This example serves as a practical guide, showcasing the importance of thoughtful database provisioning in the cloud and providing a blueprint for similar implementations in diverse scenarios.
   Benefits:
   • Azure CLI efficiency: Using the Azure CLI streamlines resource creation and management through scripting
   • Managed service: Azure SQL Database is fully managed, handling maintenance, backups, and scaling
   • Security: Azure provides advanced security features such as threat detection and encryption
   • Scalability: Azure SQL Database supports automatic and manual scaling to handle changing workloads
   • Geo-redundancy: Azure offers built-in redundancy for data protection and disaster recovery
   By following this methodology, an e-learning platform can swiftly provision and configure an Azure SQL database to store and manage user data, providing a robust foundation for their application’s backend infrastructure.

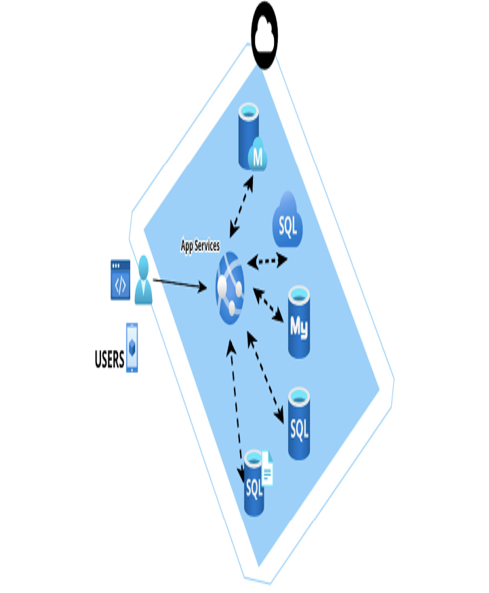

   In the following figure, we can see the basic setup of a database in a cloud environment:

Figure 9.1: App services interacting with various databases and database services
In this section, we explored two vital facets of managing databases in the cloud. Starting with provisioning, the section detailed the essential steps and considerations for allocating resources efficiently. Real-world examples, including e-commerce, healthcare patient management, and e-learning platforms, showcased practical methodologies on platforms such as Microsoft Azure. Transitioning to configuration, the focus shifted to fine-tuning database settings for optimal performance and security. These insights, coupled with hands-on examples, provide readers with a comprehensive understanding of crafting robust, efficient, and secure database environments in diverse cloud scenarios.
The following Database security best practices section delves into essential strategies and measures to ensure the security of databases within a cloud environment. It focuses on safeguarding sensitive data, preventing unauthorized access, and maintaining data integrity. Readers will learn about a range of security practices, including access controls, encryption, auditing, and monitoring. This section aims to equip readers with the knowledge to implement comprehensive security measures to protect your databases from various threats and vulnerabilities.
